Electrical Wiring Diagrams

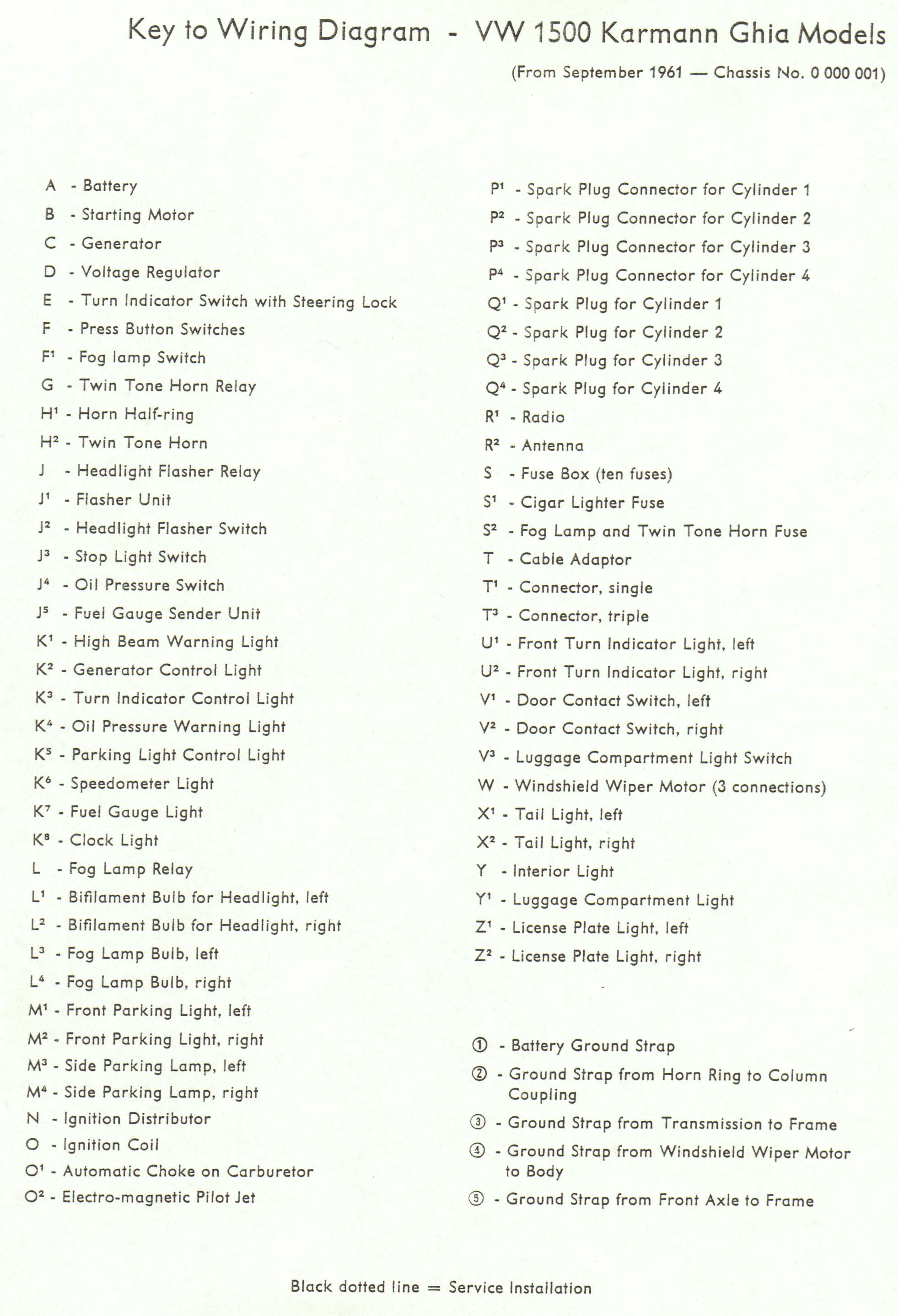

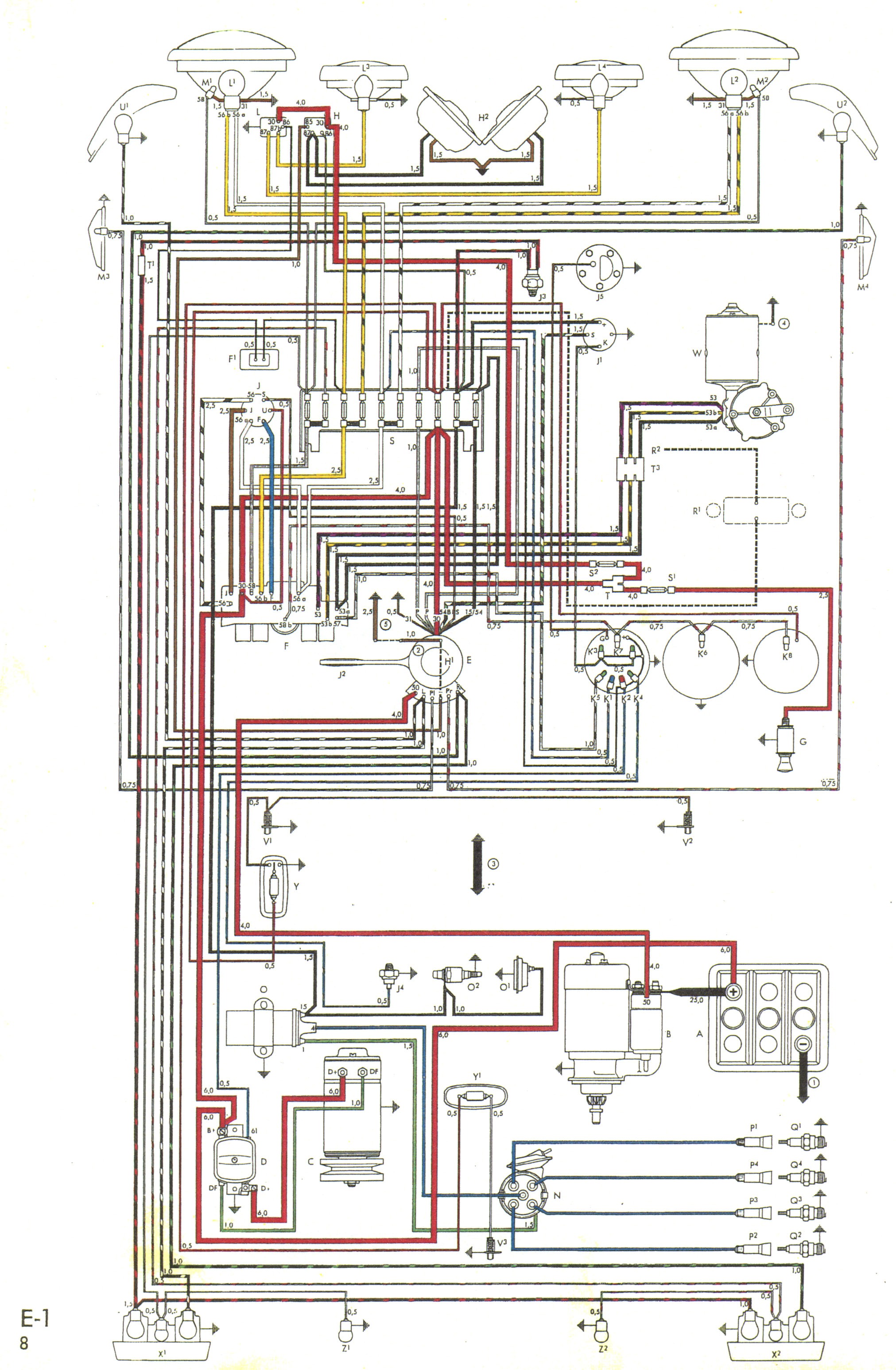

1962-63 Diagram & Key
(Single Carb 6 Volt)

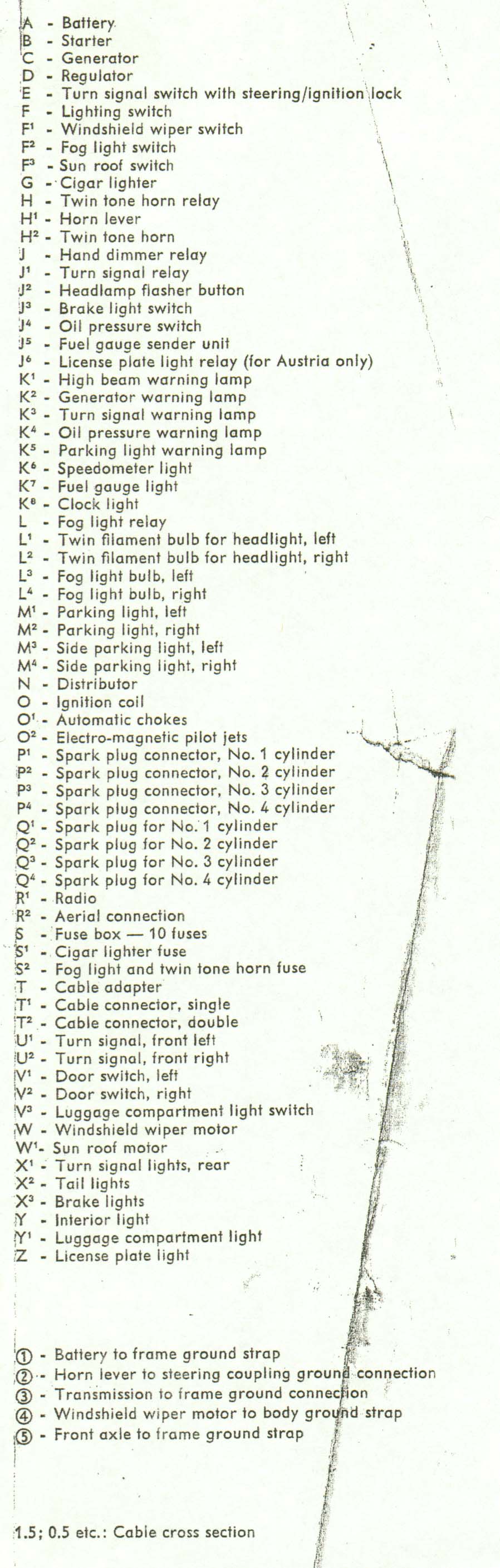

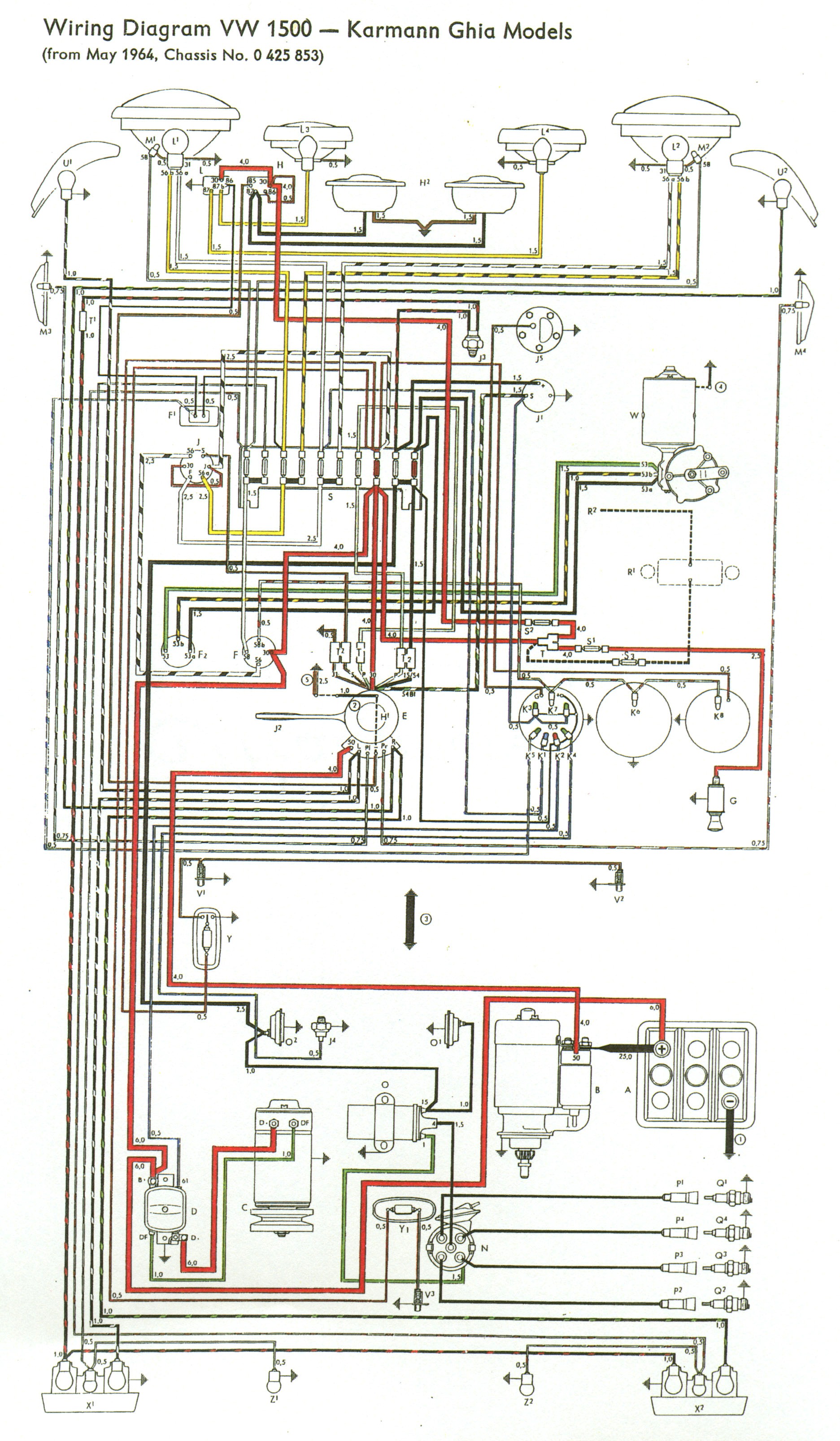

1964-66 Diagram & Key
(Dual Carbs 6 Volt)
1967 Diagram & Key
(Dual Carbs 12 Volt)

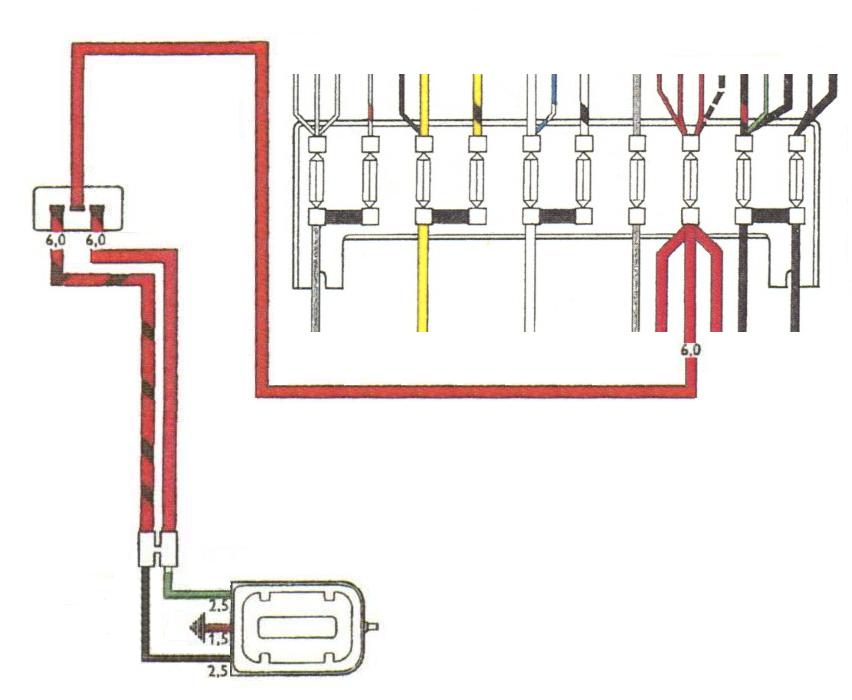

Electric Sunroof

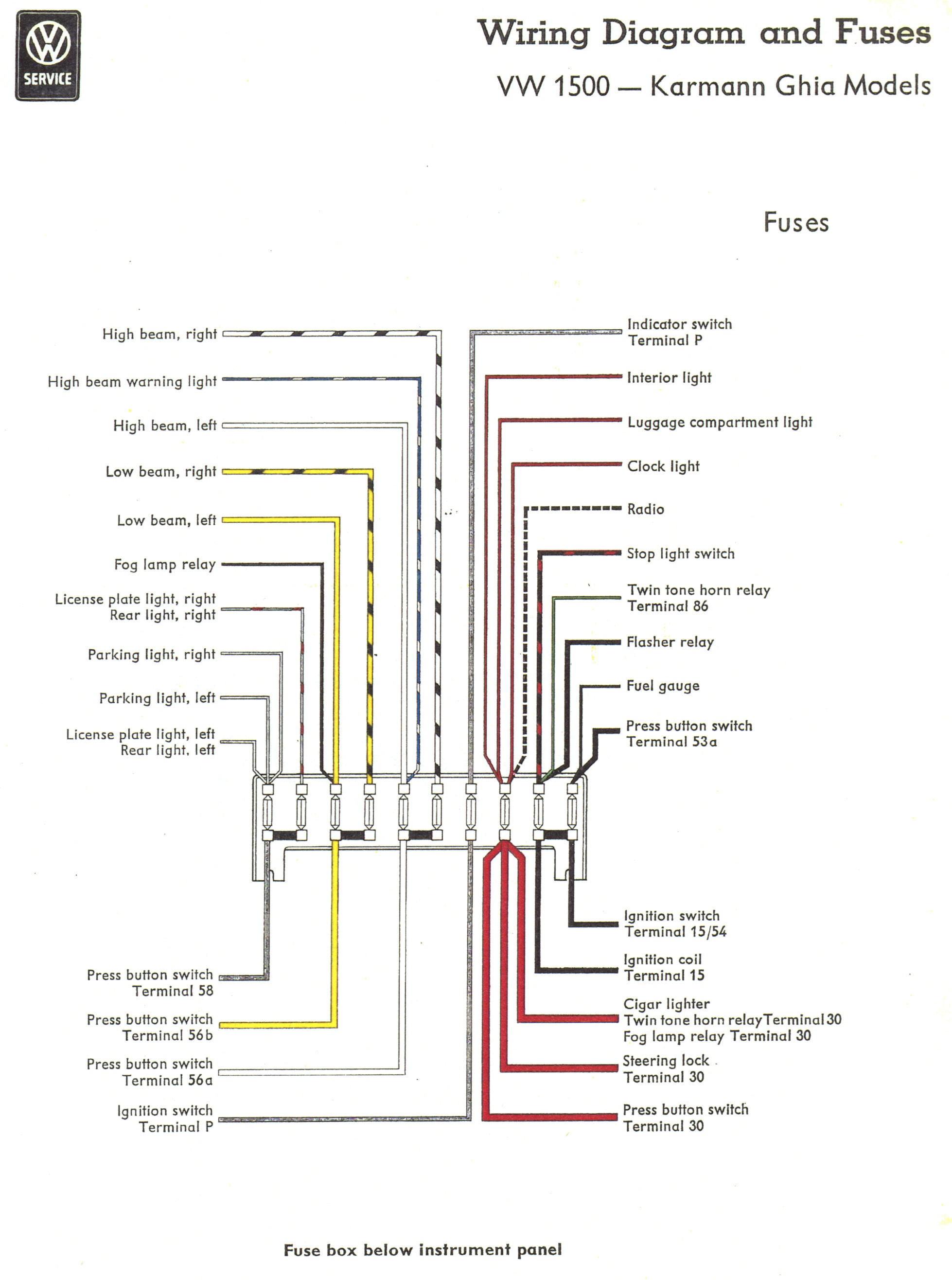

10 Fuse Box

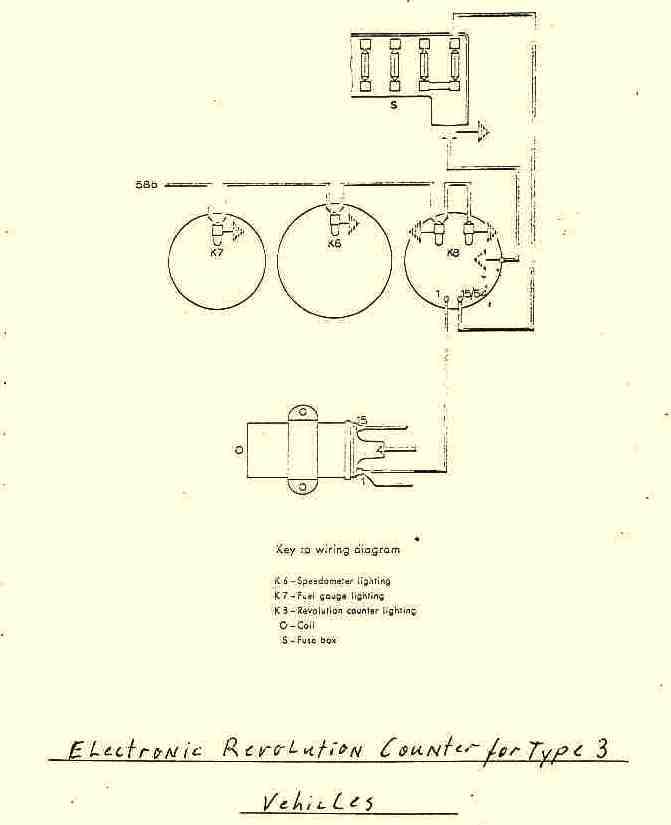

Tachometer Wiring
12V
6V
Wiring Loom Instructions
by Greg Skinner
